Disposable Baby Pant Diaper Making Machine
  • Fujian,China
  • YNK450-HSV
  • Xiamen
  • Sliver or Blue or As your requirment.
  • 1
  • 120days after receiving deposit
  • TT,L/C
Contact Now
Product Details

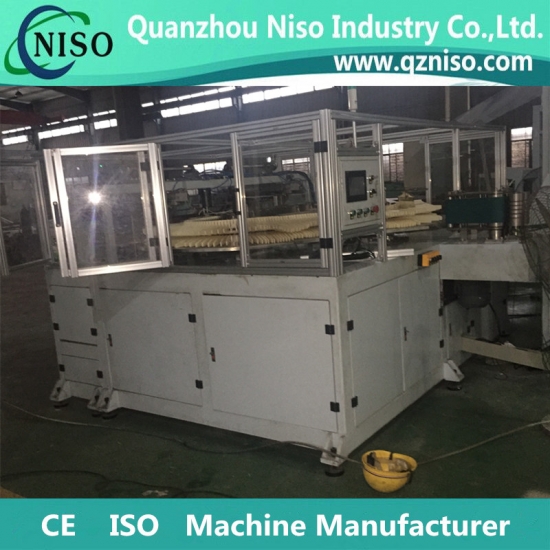

Disposable Baby Pant Diaper Making Machine


Main Fuction Features

1. Produce regular baby diaper,economic baby diaper and high grade  baby diaper

2.Produce 4 sizes of I shape and T shape baby diaper.

3. Materials of stereo-protection complex and molded on semi-servo full automatic baby Pant Diaper Making Machine.
4. Waistband,frontal tape and side tape are cut automatically
5. Extension of rubber band can be regulated
6. The quantity of SAP and fluff pulp can be adjusted freely
7. Raw materials automatic unwinding system,automatic tension control system,automatic splicing         units,automatic rejection units,automatic web guard system.
 8.Frontal tape and side tape out-set from the main machine to make it convenient to change raw material
9. Machine attached with fully automatic packing machine(stacker),make packing simpler and save labor force
 10. Semi-servo full automatic baby pant diaper making machine equipped with production door

 11.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)

Optional device:
1:Perfume spraying unit

2:Wetness display function

Main Technical Parameter

Model YNK450-HSV Disposable Baby Pant Diaper Making Machine
Type Semi-servo type
Capacity 400-450pcs/min( Medium size)
Machine size L:20-36m,W:5-7m,H:5-6m.(According to customer's plant size)
Operation area L:20-36m,W:5-7m,H:5-6m
Install power 350KW
Air compressor 3000-4000NL/min
Total weight 60T
Operator Qty 1-2
Efficient rate >90%
Reject rate <2%
Packing Antirust oil & PE film cover & Seaworthy wooden box.
H.S Code 8441809000
Origin Fujian,China
Delivery time 120days after receiving the deposit.
Payment  T/T, L/C
Standard CE,ISO,SGC

The finished baby diaper made by Disposable baby pant diaper making machine.

Machine for Making Baby Diaper

Process details

Full-servo automatic baby diaper manufacturing machine


Full-servo automatic baby diaper manufacturing machine

Packing and delivery of disposable baby pant diaper making machine.

Packing:Antirust oil & PE Wrapping Film & Seaworthy wooden box.

Full-servo automatic baby diaper manufacturing machine

Our service

Excellent After-sale Service

 1. You can send technician to learn operate machine before the machine delivery for 1- 2 month.  We can offer food and accommodation.

 2.  When machine arrives your workshop, we will send technician installing, testing the machine and training your workers.

 3. If you need one Chinese technician work for you, we can help you find one work for you.

 4. Life-long after service for Full-servo automatic baby diaper manufacturing machine.

 5. We are  Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.

 6.We can do full support for your complete project, from machine's manufacturing and  installment, supplying raw materials, designing your factory layout, workers training to final production.

 7.We have served customers from over 100 countries in the world untill now.
 8.We can offer you very good machines and service at good price.
     (we have our own parts processing workshop)
 9.We are factory manufacturer, not trading company.

Raw Materials needs .

1. Baby diapers C Grade:
pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + PE film + SAP + hot melt glue + BOPP frontal tapes + BOPP side tape + Spandex

2. Baby diapers B-Grade:
 pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + PE film (breathable PE film) + SAP + hot melt glue + BOPP frontal tapes + BOPP side tape + ADL + Spandex + Elastic Waistband

3. Baby diapers A-Grade:

 pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + clothlike laminated film+ SAP + hot melt glue + hook side tape + Loop frontal tape+ ADL + Spandex + Elastic Waistband

Full-servo automatic baby diaper manufacturing machine


Full-servo automatic baby diaper manufacturing machine
