Home Baby Diaper Machine China reliable factory of baby diaper machine with high speed (YNK300)

China reliable factory of baby diaper machine with high speed (YNK300)

semi-automatic economic  Baby diaper equipment (YNK300)

Baby diaper equipment

baby diaper machinery

China professional baby diaper machine manufacturer

baby diaper machine factory in China

China specialized baby diaper machine supplier

hot sale reputed baby diapr production line

  • item no.:

    YNK300
  • Payment:

    T/T, L/C
  • market price:

    $500000
  • product origin:

    China
  • shipping port:

    Xiamen

New Products

  • Product Details

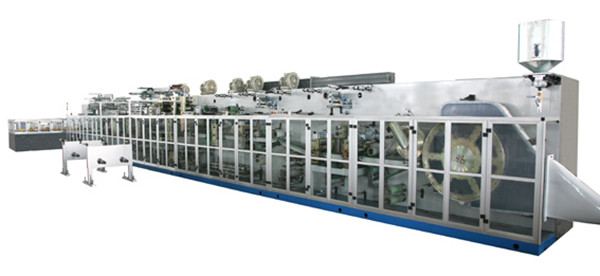

YNK300 Automatic Baby Diaper Production Equipment


diaper machine made in China


baby diaper rmaking machine






 Main Technical Parameter for Baby Diaper Machine


Designed production speed 350 pieces/min
Stable production speed 300 pieces/min(or as per customers designed)
Machine power three-phase five-wire(380V, 50HZ)
Machine capacity about 350 KW(exclude hot melt applicators and air compressor
Machine size 20.0m*7.0m*3.5m(L*W*H)(including stacker, set temporarily
Machine weight about 60T(whole production line)
Air pressure 0.6-0.8Mpa


Quick Details


*Condition: New baby diaper machine

*Product Type: Diaper Machine

*Processing Type: Pulp Molding Machine

*Place of Origin: Fujian, China (Mainland)

*Model Number: YNK300

*Voltage: 380v, 50HZ, three-phase five-wire

*Power(W): about 350kw

*Dimension(L*W*H): 20*7*3.5m(L*W*H)

*Weight: 60T

*Certification: ISO, certificate of utility model patent

*Warranty: 1 year

*After-sales Service Provided: Engineers available to service machinery overseas

*Machine type: baby diaper making machine

*Designed speed: 350 pcs/min

*Stable production speed: 300 pcs/min

*Diaper size: S, M, L, XL

*Control system: Semi-automatic control baby diaper machine

*Packaging system: Equipped with the stacker at the request of client

*Efficient rate: ≥ 85%

*Reject rate: ≤2%



Main Function Features of Diaper Machine


1. Produce regular baby diaper, economic baby diaper and high grade baby diaper


2. Produce 4 sizes of I shape and T shape baby diaper


3. Materials of stereo-protection complex and molded on full-servo automatic baby diaper manufacturing machine.


4. Waistband, frontal tape and side tape are cut automatically


5. Extension of rubber band can be regulated


6. The quantity of SAP and fluff pulp can be adjusted freely


7. Raw materials automatic unwinding system, automatic tension controls system, automatic splicing units, automatic rejection units, automatic web guard system.


 8. Frontal tape and side tape out-set from the main machine to make it convenient to change raw material


9. Machine attached with fully automatic packing machine (stacker), make packing simpler and save labor force


 10. Full-servo automatic baby diaper manufacturing machine equipped with production door


 11.Touchable Screen: Machine switch on/off, running speed, time, counting pieces, parameter setting, alarm, error display, error enquiry(functions setting appear on screen are different according to different machine type)



Machine Processing

  diaper machine made in China

  diaper making machine

 Our Workshop

   diaper making machine



Packing & Delivery:

Packing: Standard export package: pant anti-rust oil on machine, wrap machine with plastic film,
               then put machine in wooden cases.

Delivery Time: 120 days



diaper machine manufacturer



Our Services


Why choose us?

√  Chinese Listed company since Nov.30th, 2012

√  ISO certificate, certificate of utility model patentpatent for invention for machine etc

√  Full support for your complete project

√  Customers from over 100 countries in the world till now

√  Very good machines and service at good price

√  Own parts processing workshop

√  Factory manufacturer, not trading company

Excellent After-sales service

1. Machine operation training

2. Machine operators available


3. Life-long after-sales service for machines.

Raw Materials Available for Diaper Manufacturing

Baby diapers: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt adhesive + elastic adhesive + hook side tape + Loop frontal tape + ADL + Elastic Ribbon + Elastic Waistband

 diaper raw materials

  diaper raw materials/diaper machine suppliers
