Main Function Features
1. Produce regular baby diaper,economic baby diaper and high grade baby diaper
2.Produce 4 sizes of I shape and T shape baby diaper.
3. Materials of stereo-protection complex and molded on full-servo automatic baby diaper manufacturing machine.
4. Waistband,frontal tape and side tape are cut automatically
5. Extension of rubber band can be regulated
6. The quantity of SAP and fluff pulp can be adjusted freely
7. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.
8.Frontal tape and side tape out-set from the main machine to make it convenient to change raw material
9. Machine attached with fully automatic packing machine(stacker),make packing simpler and save labor force
10. Full-servo automatic baby diaper manufacturing machine equipped with production door
11.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)
Optional device:
1:Perfume spraying unit
2:Wetness display function
item no.:
YNK350Payment:
T/T, L/Cproduct origin:
Chinashipping port:
XiamenLead Time:

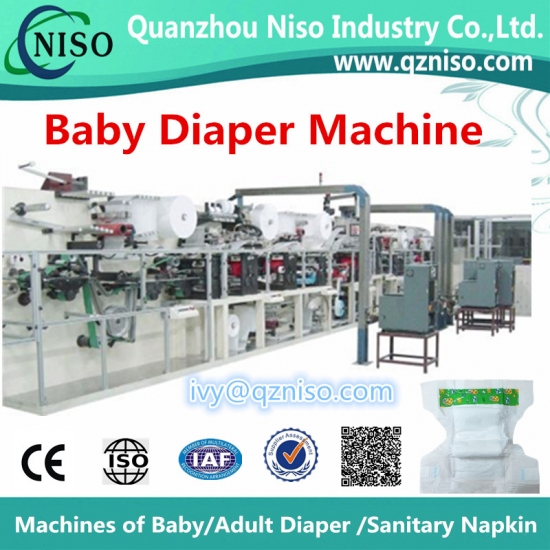

within 120 daysChina Semi-Automatic Baby Diaper Making Machine(YNK-350)
Photos of baby diaper produced by machine, we have a professional
R&D team to redesign our machine to produce other kind of diaper as per your requirement.
Quick Details of Semi-Automatic Baby Diaper Machine
Condition |
Used |
Stable |
Yes |
Product Type |
Diaper Machine |
Processing Type |
Semi-Automatic Baby Diaper Machine (YNK300) |
Place of Origin |
Fujian, China (Mainland) |
Model Number |
YNK300 |
Certification |
CE,ISO certificates |
Warranty |
1 year |
After-sales Service Provided |
Engineers available to service machinery overseas |
Stable: |
yes |
Size of diaper: |
S, M, L, XL |
Finished product: |
baby diaper |
Control system |
Semi-Automatic baby diaper machine |
Waste rate |
less than 2% |
Operators |
6-8 operators including packing baby diaper |
Product Description of Semi-Automatic Baby Diaper Machine
Main Technical Parameter
Designed production speed |
350 pieces/min for Semi-Automatic Baby Diaper Machine |
Stable production speed |
300 pieces/min(or as per customers designed) |
Machine power |
three-phase five-wire(380V, 50HZ) |
Machine capacity |
about 250-300KW(exclude hot melt applicators and air compressor) |
Machine size |
30.0m*7.0m*3.5m(L*W*H)( (Can be customized) |
Machine weight |
about 50 Ttons(whole production line) |
Air pressure |
0.6-0.8Mpa |
Main Function Features
1. Produce regular baby diaper,economic baby diaper and high grade baby diaper
2.Produce 4 sizes of I shape and T shape baby diaper.
3. Materials of stereo-protection complex and molded on full-servo automatic baby diaper manufacturing machine.
4. Waistband,frontal tape and side tape are cut automatically
5. Extension of rubber band can be regulated
6. The quantity of SAP and fluff pulp can be adjusted freely
7. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.
8.Frontal tape and side tape out-set from the main machine to make it convenient to change raw material
9. Machine attached with fully automatic packing machine(stacker),make packing simpler and save labor force
10. Full-servo automatic baby diaper manufacturing machine equipped with production door
11.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)
Optional device:
1:Perfume spraying unit
2:Wetness display function
Details of machine for Semi-Automatic Baby Diaper Machine
Our Workshop for Semi-Automatic Baby Diaper Machine
Packaging & Delivery for Semi-Automatic Baby Diaper Machine
Packaging Details: wooden cases and plastic film for full automatic baby diaper machine
Delivery Details: within 120days Baby Diaper Machine
Models
Model |
Driven mode |
Speed(PCS/MIN) |
Weight(T) |
Capacity |
Machine size(L*W*H) |
YNK500SV |
full servo driving |
500-600 |
60 |
330kw |
31*8*5.5m |
YNK450HSV |
semi-servo driving |
400-450 |
60 |
240kw |
27*8*5.5m |
YNK400FC |
inverter driving |
400-450 |
60 |
190kw |
27*8*5.5m |
Why Choose Us?
Profession design
Our factory has in machinery industrial for 15 years, improve and innovate technology from Japan and Italy all the time.
Quality
All the spare parts used according to the contract, original German & Japan & Italy & USA brand.
Processing
CNC processing, special surface processing, anti-glue processing.
Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Excellent After-sale Service
1. You can send technician to learn machine operation before the machine delivery for 1-2 month. We can offer food and accommodation.
2. When machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.
3. If you need one Chinese technician work for you, we can help you find one work for you.
4. Life-long after service for the baby diaper machine
Other raw materials of sanitary pads& diapers available:
