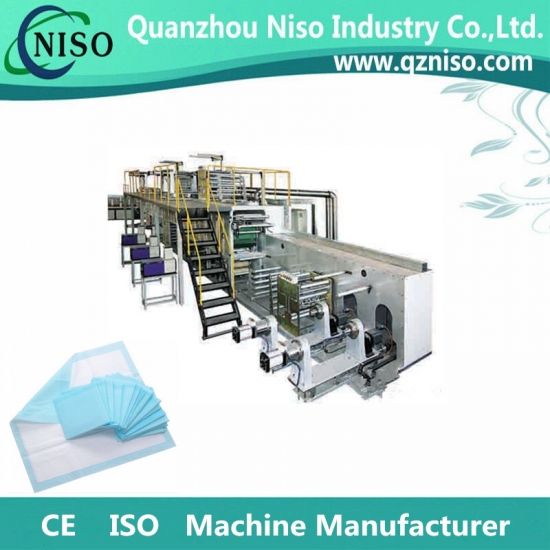

Frequency Automatic Disposable Under Pad Making Equipment

Our Semi Servo Automatic Disposable Under Pad Making Machine can produce different lengths products. Also one machine can produce both under pads and puppy pads
  • item no.:

    CD150-FC
  • Payment:

    TT,L/C
  • product origin:

    Fujian,China
  • Color:

    Blue or Sliver(as your requirment)
  • shipping port:

    Xiamen
  • Lead Time:

    120days

New Products

  • Product Details

Frequency  Automatic Disposable Under Pad Making Equipment

Under Pad Making Equipment

Main Fuction Features

1. Single drum former device. Crusher can take both treated and untreated fluff pulp.
2. Fluff pulp feeding is controlled by servo motor. Or air laid paper can be used instead of fluff pilp to produce high quality pads.
3. SAP feeding device. SAP is added mixed with fluff pulp and controlled by servo motor. If use air laid paper to instead of fluff pulp, then SAP feeding device can be used as spare device.
4. Tissue paper double sides feeding units. If use air laid paper to instead of fluff pulp, then tissue paper is unnecessary to use.
5. Net shape pressing device. Cylinder pressing.
6. Fluff core or air laid paper position adjusting device.
7. Fluff core or air laid paper cutting device. Cylinder pressing.
8. Bottom film and top sheet materials feeding units, Glue adding and fixing shape by pressing.
9. Pad vertical folding
10. Wastes rejection device
11. Pad crosswise folding
12. Auto-counting and arrange coming out. (Semi Servo  Automatic Disposable Under Pad Making Machine can link with stacker machine to do automatic packing. )

Optional device:
1:Perfume spraying unit



Main Technical Parameter

Model CD150-FC Frequency automatic disposable under pads making equipment
Type  Frequency type
Capacity 100-150pcs/min
Machine size L:22m,W:8m,H:3.5m.(According to customer's plant size)
Operation area L:22m,W:8m,H:3.5m
Install power 220KW
Air compressor 3000-4000NL/min
Total weight 30T
Operator Qty 1-2
Efficient rate >80%
Reject rate <5%
Packing Antirust oil & PE film cover & Seaworthy wooden box.
H.S Code 8441809000
Origin Fujian,China
Delivery time 120days after receiving the deposit.
Payment  T/T, L/C
Standard CE,ISO,SGC

The finished under pads made by under pad making equipment

Under Pad Machine

Process details of frequency  automatic disposable under pad making equipment.

Under Pad Machine

Workshop

Full-servo automatic baby diaper manufacturing machine

Packing and delivery of frequency automatic under pad making equipment

Packing:Antirust oil & PE Wrapping Film & Seaworthy wooden box.

Full-servo automatic baby diaper manufacturing machine

Our service

Excellent After-sale Service

 1. You can send technician to learn operate machine before the machine delivery for 1- 2 month.  We can offer food and accommodation.

 2.  When machine arrives your workshop, we will send technician installing, testing the machine and training your workers.

 3. If you need one Chinese technician work for you, we can help you find one work for you.

 4. Life-long after service for Full-servo automatic baby diaper manufacturing machine.

 5. We are  Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.

 6.We can do full support for your complete project, from machine's manufacturing and  installment, supplying raw materials, designing your factory layout, workers training to final production.

 7.We have served customers from over 100 countries in the world untill now.
 8.We can offer you very good machines and service at good price.
     (we have our own parts processing workshop)
 9.We are factory manufacturer, not trading company.

Under Pad Machine
