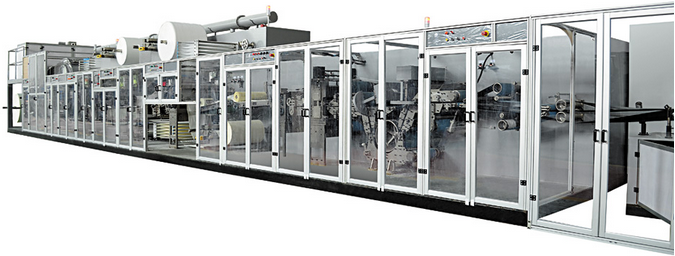

High speed Full-servo Underpads production machine manufacture in China (CD220-SV)

Underpads Machine Function & Parameter:

1. Outputted products from this machine: Bed Mattress

2. Designed speed: 300 meters/min

3. Production speed: 220meters/min(width 600mm) 200meters/min(width 800mm)

 4. Overall size of equipment: 22m(L)×3.5m(W)×2.5m(H)

 5. Machine power: approx 300KW (380V, 50Hz)

 6. Weight of equipment: about 70,000kgs

7.The main force bar of the machine frame:150*150*8 square tube; 8. Thickness of the faceplate is 30mm

9.Cutter bracket is adopted with dia 45 of steel bracket and pushing backboard.

10.Waste rate;≤ 2%



Can produce 3-ply (PE film, fluff pulp, non-woven fabrics) or 5-ply (PE film, down tissue, fluff pulp, upper tissue,non-woven fabrics) bed mattress & pet mattress with high speed



* Dimension of the raw material, Parameter

1. Cotton core: 34g/m2 (include upper and down tissue, wood pulp which can use treated pulp, untreated pulp and semi-treated pulp, as well as recycled treated pulp)

 2. Non-woven fabrics: 9g/m2

3. PE/PP: 15g/m2

4. SAP: 8g/m2



* Raw material unwinding diameter and weight:

1. Upper and down tissue Roll Diameter: Φ960mm Weight: 125kg

2. Non woven fabrics Roll Diameter: Φ960mm Weight: 125kg

3. PE/PP Roll Diameter: Φ600mm Weight: 60kg

4. Wood pulp Roll Diameter: Φ1500mm Weight: 500kg



* Finished product folding methods

1. C folding and two or three folding

2. Z folding and two or three folding

3. W folding and two or three foldin

  • item no.:

    CD220-SV
  • Payment:

    T/T, L/C
  • product origin:

    China
  • shipping port:

    Xiamen
  • Lead Time:

    within 120days

New Products

  • Product Details

High Speed Full-servo Underpads Production Machine Manufacture in China (CD220-SV)

 High speed full-automatic underpads machine manufacture (CD220-SV)

Underpads Machine producing Underpads as follows:

High speed full-automatic underpads machine manufacture (CD220-SV)


Quick Details of Underpads Production Machine

Condition

Used

Product Type

Underpads  Machine

Processing Type

High speed Full-servo Underpads Production machine manufacture in China (CD220-SV)

Place of Origin

Fujian, China (Mainland)

Model Number

CD220-SV

Certification

CE,ISO certificates

Warranty

1 year

After-sales Service Provided

Engineers available to service machinery overseas

Stable:

yes

Finished product:

Underpad

Control system

full-automatic for underpads production machine manufacture

Waste rate

less than 2%

Operators

6-8 operators including packing underpads



Underpads Machine Function & Parameter:

1. Outputted products from this machine: Bed Mattress

2. Designed speed: 300 meters/min

3. Production speed: 220meters/min(width 600mm) 200meters/min(width 800mm)

 4. Overall size of equipment: 22m(L)×3.5m(W)×2.5m(H)

 5. Machine power: approx 300KW (380V, 50Hz)

 6. Weight of equipment: about 70,000kgs

7.The main force bar of the machine frame:150*150*8 square tube; 8. Thickness of the faceplate is 30mm

9.Cutter bracket is adopted with dia 45 of steel bracket and pushing backboard.

10.Waste rate;≤ 2%



Can produce 3-ply (PE film, fluff pulp, non-woven fabrics) or 5-ply (PE film, down tissue, fluff pulp, upper tissue,non-woven fabrics) bed mattress & pet mattress with high speed



* Dimension of the raw material, Parameter

1. Cotton core: 34g/m2 (include upper and down tissue, wood pulp which can use treated pulp, untreated pulp and semi-treated pulp, as well as recycled treated pulp)

 2. Non-woven fabrics: 9g/m2

3. PE/PP: 15g/m2

4. SAP: 8g/m2



* Raw material unwinding diameter and weight:

1. Upper and down tissue Roll Diameter: Φ960mm Weight: 125kg

2. Non woven fabrics Roll Diameter: Φ960mm Weight: 125kg

3. PE/PP Roll Diameter: Φ600mm Weight: 60kg

4. Wood pulp Roll Diameter: Φ1500mm Weight: 500kg



* Finished product folding methods

1. C folding and two or three folding

2. Z folding and two or three folding

3. W folding and two or three foldin

High speed full-automatic underpads machine manufacture (CD220-SV)


Our Workshop of Underpads Production Machine

High speed full-automatic underpads machine manufacture (CD220-SV)

High speed full-automatic underpads machine manufacture (CD220-SV)

* Packaging & Delivery

Packaging Details: Seaworthy wooden cases and plastic film packaging

Delivery Details: within 120days  underpads  Machine manufacture

 High speed full-automatic underpads machine manufacture (CD220-SV)

Why Choose us?

Profession design

Our factory has in machinery industrials for 15 years,improve andinnovate technology from Japan Italy all the time.

Quality

All the spare parts used according to the contract, original German & Japan & Italy & USA brand.

Processing

CNC processing, special surface processing, anti-glue processing.

Commitment

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

Excellent After-sale Service

1. You can send technician to learn machine operation  before the machine delivery for 1-2 month. We can offer food and accommodation

2.  When machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.

3. If you need one Chinese technician work for you, we can help you find one work for you.

4. Life-long after service for the baby diaper machine


Other raw materials of sanitary pads& diapers available:

High speed full-automatic underpads machine manufacture (CD220-SV)
