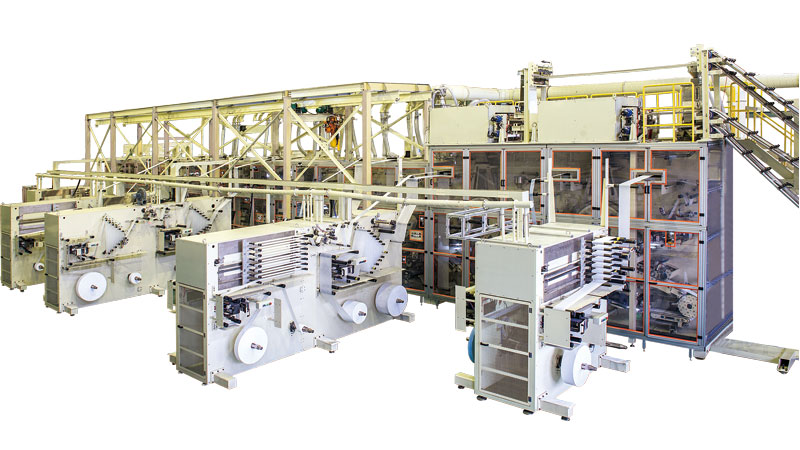

Hot Sell Full Production Line Semi Servo Automatic Baby Waist Band Diaper Making Machine

tem No.: LS-INK400
Payment: L/C, T/T
Product Origin: China
Color: customized
Shipping Port: xiamen Port
Lead Time: 120 Days
  • Payment:

    T/T, L/C
  • product origin:

    China
  • Color:

    Customerization
  • shipping port:

    Xiamen

New Products

  • Product Details

Hot Sell Full Production Line Semi Servo Automatic Baby Waist Band Diaper Making Machine


 1. Main Technical Parameter

Product size 280mm, 320mm Machine weight 45T
Designed production speed 400 pcs/min Stable production speed 300 pcs/min
Machine size 22m*3m*3m Weight deviation ±2%
Rate of finished product ≥97% Efficiency rate ≥85%
Power source 380V50HZ Air pressure 0.6-0.8MPA
Machine direction Customerization Machine direction Customerizatio

Specification

1,Inverter motor control the pulp feeding quantity evenly.

2,Auto control SAP feeding quantity

3,Auto splicing system

4, Auto tension control system

5,Fontal tape feeding unit ,two reel, as speed is low and cost considered.Tape is conveyed to cut & place unit, cut tape is sucked on vacuum roll and transferred to backsheet, up roll white steel blade, easy assembling and disassembling, easy sharpening and changing. With auto cleaning foam roll.

6,Adopt scratch cut mode to less abrasion and over impact.

7,Vertical folding system

8,Out put system

9,Bi & Tri folding system



Parameters

Machine details:

Machine Quantity
NS-INK400 Inverter type baby diaper machine 1 set
Main motor driving 1 set
High speed crusher 1 set
SAP feeding unit 1 set
Web guider 9 sets
Inverter motor Mitsubishi 1 set
Waste raw materials collect unit 1 set
Raw materials with auto unwinding, auto splicing, auto tension control, auto detective and auto rejection 6 sets
Safety door 1 set
Simple push machine 2 sets
Simple sealing machine 2 sets
Glue applicators  (Chinese brand) 4 sets
Free spare parts (attachment list) 1 set

Machine main parameters:

Design speed 500 pcs/min
Working speed 400 pcs/min
Qualified rate 98%(calculate based on 7.5 hours, the rate between qualified products and total production quantity, except substandard products caused by glue applicator error)
Production efficiency ≥90%( calculate based on 7.5 hours, the rate between real production quantity and theory production quantity)
Capacity 180KW
Power Three phases four wires 380V±5%/50Hz  (ground wire)
Air pressure ≥0.6mpa, 1.8m3/min
Total weight About 50 tons
Machine size 30×5×3M (L×W×H)
Working space 30-40×7×5M  (L×W×H)
Machine color Customized
Product size Customized  ( 4 sizes)
Machine direction Customized
Container 5×40HQ


Details:

       The picture sanitary pads for your reference, maybe you can give us the samples what you want in local market. We have a professional R&D team to redesign our machine to produce other kinds of sanitary napkin as per your requirement.


About us


Our services



Raw materials that we can offer




Frequently Asked Question


Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture of baby diaper machine, adult diaper machine, pull on diaper machine, sanitary napkin machine, panty liner machine,underpad machine, pet pad machine, breast pad machine and Underarm pad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every taspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. you can sent your engineers to our factory for training, we will offer accommodation.

Q: How long can I get the machine?
A: we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
