servo control cotton soft baby diaper machine (YNK400-HSV)
  • China
  • YNK400-HSV
  • Xiamen
  • 1
  • T/T, L/C
  • $700000
Contact Now
Product Details

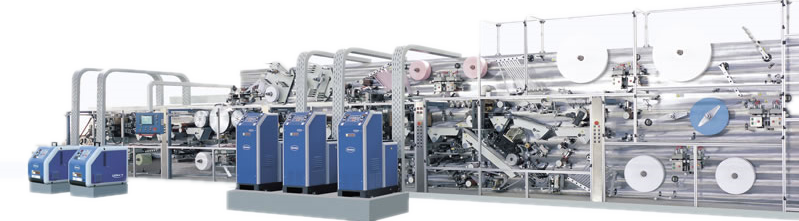

Servo Control Cotton Soft  Baby Diaper  Machine

 baby diaper making machine

baby diaper machine price



 Main Technical Parameter for Kids Diaper Machine

Designed production speed  500 pieces/min
Stable production speed  400 pieces/min(or as per customers designed)
Machine power three-phase five-wire(380V, 50HZ)
Machine capacity about 350 KW(exclude hot melt applicators and air compressor
Machine size 20.0m*7.0m*3.5m(L*W*H)(including stacker, set temporarily
Machine weight about 60T(whole production line)
Air pressure 0.6-0.8Mpa

Quick Details

*Condition: New kids diaper machine

*Product Type: Kids Diaper Machine

*Processing Type: Pulp Molding Machine

*Place of Origin: Fujian, China (Mainland)

*Model Number: YNK400-HSV

*Voltage: 380v, 50HZ, three-phase five-wire

*Power(W): about 350kw

*Dimension(L*W*H): 20*7*3.5m(L*W*H)

*Weight: 60T

*Certification: ISO, certificate of utility model patent

*Warranty: 1 year

*After-sales Service Provided: Engineers available to service machinery overseas

*Machine type: Kids diaper making machine

*Designed speed: 500 pcs/min

*Stable production speed: 400 pcs/min

*Diaper size: S, M, L, XL

*Control system: Semi-servo control baby pull up pants machine

*Packaging system: Equipped with the stacker at the request of client

*Efficient rate: ≥ 85%

*Reject rate: ≤2%


Main Function Features of  Kids Diaper Machine

1. Produce regular baby diaper, economic baby diaper and high grade baby diaper

2. Produce 4 sizes of I shape and T shape baby diaper.

3. Servo motors driving system with PLC control and big touch screen.

4. High -speed teeth - like crusher.

5. Web - wheel molding.

6. SAP auto adding with amount control.

7. Servo unwinding, auto - tension control and splicing for raw materials.

8. Auto reject for wasted & rejected product, auto detect & alarm for material exhausted.

9. Phase adjusting during running without stop.

10. Diaper tri -folding or double folding.

11. Diaper auto counting & stacking.

12.'S' cutting/magic side tapes.

13. Security door equipped in operation side.


Machine Processing

  diaper machine made in China

  diaper making machine

 Our Workshop

   diaper making machine


Packing & Delivery:

Packing: Standard export package: pant anti-rust oil on machine, wrap machine with plastic film,
               then put machine in wooden cases.

Delivery Time: 120 days


diaper machine manufacturer


Our Services

Why choose us?

√  Chinese Listed company since Nov.30th, 2012

√  ISO certificate, certificate of utility model patentpatent for invention for machine etc

√  Full support for your complete project

√  Customers from over 100 countries in the world till now

√  Very good machines and service at good price

√  Own parts processing workshop

√  Factory manufacturer, not trading company

Excellent After-sales service

1. Machine operation training

2. Machine operators available

3. Life-long after-sales service for machines.

Raw Materials Available for Diaper Manufacturing

Baby diapers: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt adhesive + elastic adhesive + hook side tape + Loop frontal tape + ADL + Elastic Ribbon + Elastic Waistband

 diaper raw materials

  diaper raw materials/diaper machine suppliers
