Full-servo Automatic Lady Sanitary Napkin Machine
  • Fujian,China
  • HY800-SV
  • Xiamen
  • Sliver or Blue or As your requirment.
  • 1
  • 120days after receiving deposit
  • TT,L/C
Contact Now
Product Details

Full-servo Automatic Lady Sanitary Nakin Machine

Sanitary Napkin Machine


Main Fuction Features

1. Produce regular sanitary napkin,economic sanitary napkin and high grade sanitary napkin

2.Produce different sizes of regular sanitary napkin  and Ultra-thin sanitary napkin.

3. Materials of stereo-protection complex and molded on full-servo automatic lady sanitary napkin machine.
4. The quantity of SAP and fluff pulp can be adjusted freely
5. Raw materials automatic unwinding system,automatic tension control system,automatic splicing         units,automatic rejection units,automatic web guard system.
6. Machine can attached with fully automatic packing machine(stacker),make packing simpler and save labor force
 7. Full-servo automatic lady sanitary napkin machine equipped with production door

 8.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)

Optional device:
1:Perfume spraying unit


Main Technical Parameter

Model HY800-SV Full-servo automatic lady sanitary napkin machine
Type Full-servo type
Capacity 800-1000pcs/min
Machine size L:30m,W:7m,H:3m.(According to customer's plant size)
Operation area L:30m,W:7m,H:3m
Install power 200KW
Air compressor 3000-4000NL/min
Total weight 50T
Operator Qty 7-9
Efficient rate >90%
Reject rate <2%
Packing Antirust oil & PE film cover & Seaworthy wooden box.
H.S Code 8441809000
Origin Fujian,China
Delivery time 120days after receiving the deposit.
Payment  T/T, L/C
Standard CE,ISO,SGC

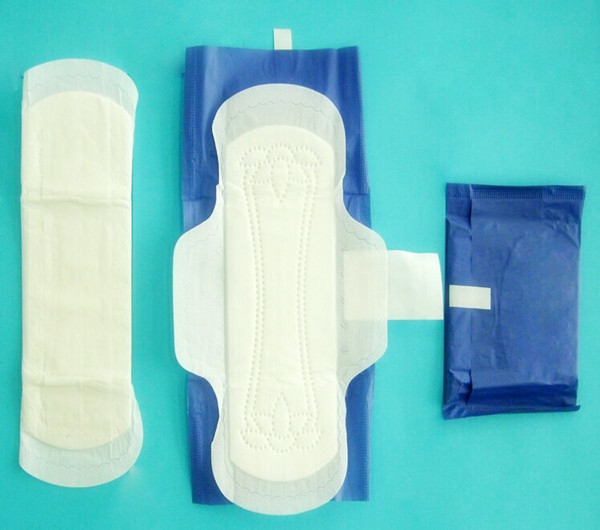

The finished sanitary napkin made by sanitary napkin machine.

Sanitary Napkin Machine

Process details of Full-servo Automatic Lady Sanitary Nakin Machine.

Full-servo automatic baby diaper manufacturing machine


Full-servo automatic baby diaper manufacturing machine

Packing and delivery of Full-servo Automatic Lady Sanitary Nakin Machine

Packing:Antirust oil & PE Wrapping Film & Seaworthy wooden box.

Full-servo automatic baby diaper manufacturing machine

Our service

Excellent After-sale Service

 1. You can send technician to learn operate machine before the machine delivery for 1- 2 month.  We can offer food and accommodation.

 2.  When machine arrives your workshop, we will send technician installing, testing the machine and training your workers.

 3. If you need one Chinese technician work for you, we can help you find one work for you.

 4. Life-long after service for Full-servo automatic baby diaper manufacturing machine.

 5. We are  Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.

 6.We can do full support for your complete project, from machine's manufacturing and  installment, supplying raw materials, designing your factory layout, workers training to final production.

 7.We have served customers from over 100 countries in the world untill now.
 8.We can offer you very good machines and service at good price.
     (we have our own parts processing workshop)
 9.We are factory manufacturer, not trading company.

Raw Materials needs for Sanitary Napkin Machine.

1. Fluff type with quick easy package:

pulp + Hydrophilic nonwoven (perforated nonwoven/film) + tissue paper + PE film + SAP + hot melt glue + release paper + PE packing film + Easy tape

2.Ultra-thin with quick easy package:

 Hydrophilic nonwoven (perforated nonwoven/film)  + SAP paper + PE film + hot melt glue + air laid paper + PE packing film + Easy tape

3.Fluff type wings shape

pulp + Hydrophilic nonwoven (perforated nonwoven/film ) + tissue paper + PE film + SAP + hot melt glue + release paper

4.Ultrathin type wings shape

pulp + Hydrophilic nonwoven (perforated nonwoven/film) + SAP paper + PE film + SAP + hot melt glue + release paper

5.Without wings

pulp + Hydrophilic nonwoven (perforated nonwoven/film) + tissue paper + PE film + SAP + hot melt glue + release paper

Sanitary Napkin Machine

Full-servo automatic baby diaper manufacturing machine
