High Speed Elastic T Shape Diaper Production Line Manufacture (YNK500-SV)
High
Speed Elastic T Shape Diaper Production
Line Manufacture (YNK500-SV)
Product description of Diaper Production Line
Quick Details
Condition
Used
Stable
Yes
Product Type
Diaper Machine
Processing Type
High Speed Elastic T Shape Diaper Production Line(YNK500-SV)
Place of Origin
Fujian, China (Mainland)
Model Number
YNK500-SV
Certification
CE,ISO certificates
Warranty
1 year
After-sales Service
Provided
Engineers available to
service machinery overseas
Stable:
yes
Size of diaper:
S, M, L, XL
Finished product:
baby diaper
Control system
full-automatic
Waste rate
less than 2%
Operators
6-8 operators including
packing baby diaper
Main Technical Parameter
Designed production speed
600pieces/min
Stable production speed
500 pieces/min(or as per customers
designed)
Machine power
three-phase five-wire(380V, 50HZ)
Machine capacity
about 300-350KW(exclude hot melt
applicators and air compressor)
Machine size
30.0m*7.0m*3.5m(L*W*H)( (Can be customized)
Machine weight
about 60 Ttons(whole production line)
Air pressure
0.6-0.8Mpa
Main Function
Features
1.
Produce regular baby diaper,economic baby diaper and high grade baby diaper
2.Produce
4 sizes of I shape and T shape baby diaper.
3. Materials of stereo-protection complex and molded on
full-servo automatic baby diaper manufacturing machine.
4. Waistband,frontal tape and side tape are cut automatically
5. Extension of rubber band can be regulated
6. The quantity of SAP and fluff pulp can be adjusted freely
7. Raw materials automatic unwinding system,automatic tension
control system,automatic splicing units,automatic rejection
units,automatic web guard system.
8.Frontal tape and side tape out-set from the main machine to
make it convenient to change raw material
9. Machine attached with fully automatic packing
machine(stacker),make packing simpler and save labor force
10. Full-servo automatic baby diaper manufacturing
machine equipped with production door
11.Touchable
Screen:Machine switch on/off,running speed,time,counting pieces,parameter
setting,alarm,error display,error enquiry(functions setting appear on screen
are different according to different machine type)
Optional device:
1:Perfume spraying unit
2:Wetness
display function
Photo of machine for Diaper Production Line
Our workshop for Diaper Production Line
Packaging & Delivery for Diaper Production Line
Packaging Details: wooden cases and plastic film for full automatic baby diaper production line
Delivery Details: within
120days Baby Diaper production line
Models
Model
Driven mode
Speed(PCS/MIN)
Weight(T)
Capacity
Machine size(L*W*H)
YNK500SV
full servo driving
500-600
60
330kw
31*8*5.5m
YNK450HSV
semi-servo driving
400-450
60
240kw
27*8*5.5m
YNK400FC
inverter driving
400-450
60
190kw
27*8*5.5m
Why
Choose us?
Profession design
Our factory has in machinery industrials for 15
years,improve andinnovate technology from Japan Italy all the time.
Quality
All the
spare parts used according to the contract, original German & Japan & Italy & USA brand.
Processing
CNC
processing, special surface processing, anti-glue processing.
Commitment
We will
sign a letter of commitment while we sign the contract, which will improve your
confidence to us.
Excellent
After-sale Service
1. You can send technician to
learn machine operation before the machine delivery for 1-2
month. We can offer food and accommodation.
2. When machine arrive your workshop, we will
send technician to your workshop installing, testing the machine and training
your workers.
3. If
you need one Chinese technician work for you, we can help you find one work for
you.
4.
Life-long after service for the baby diaper machine

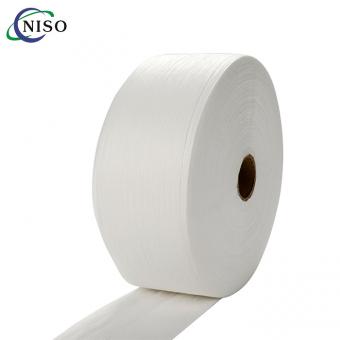

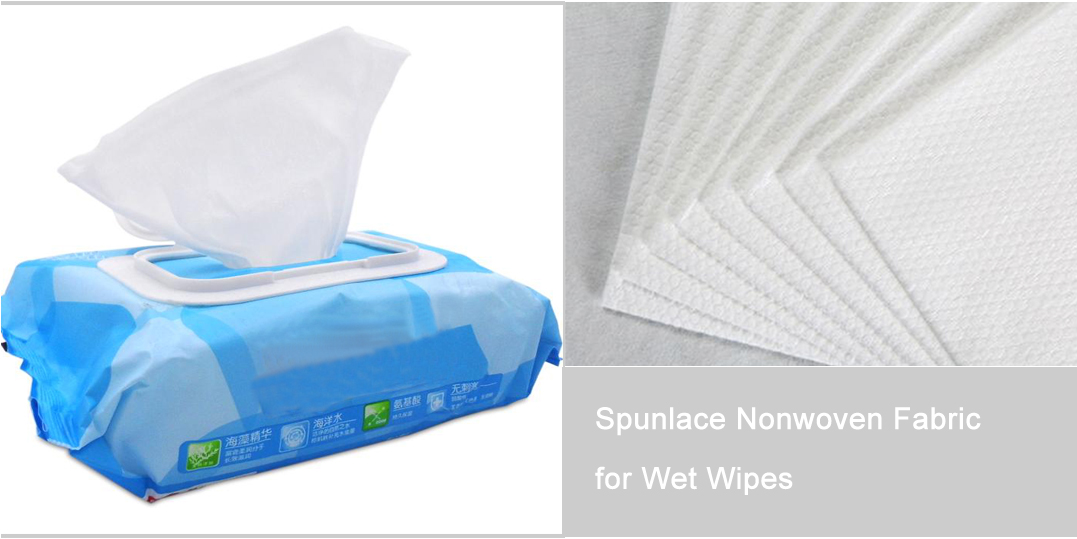

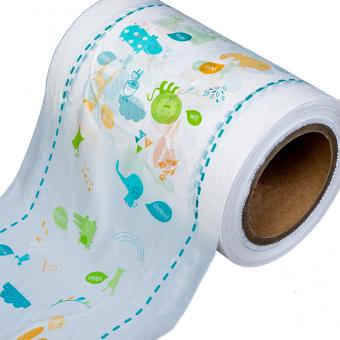

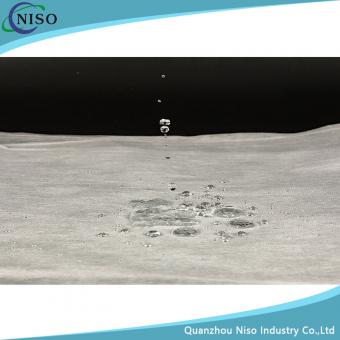

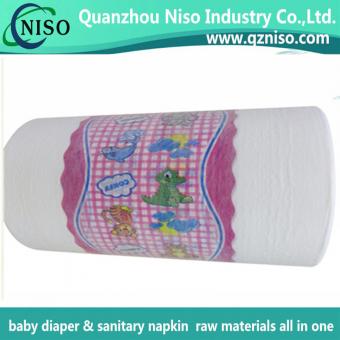

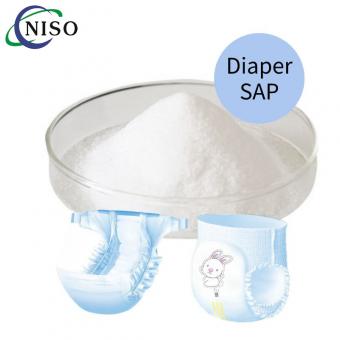

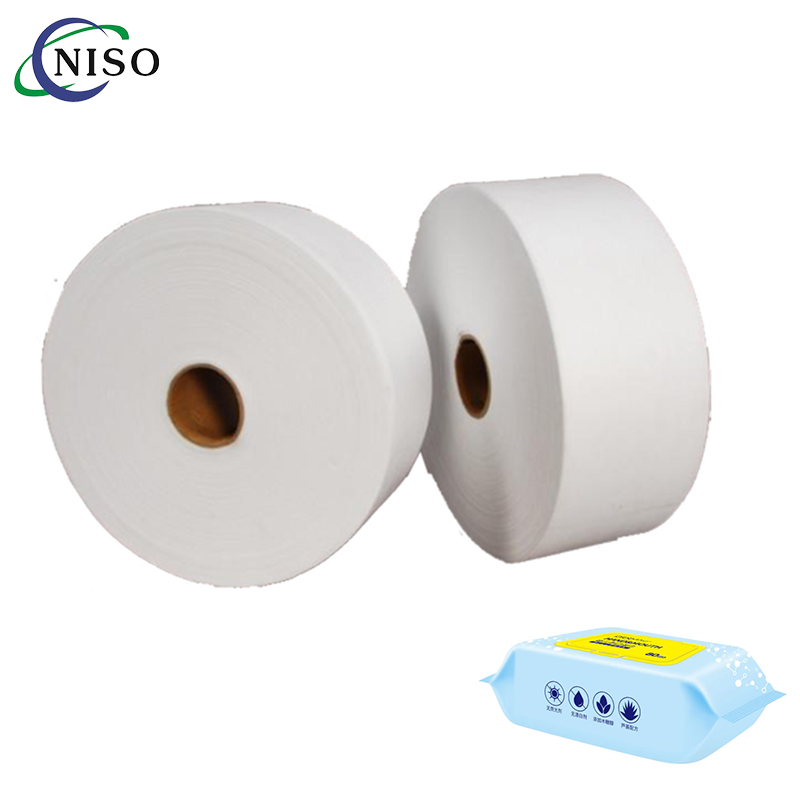

Other raw materials of sanitary pads& diapers
available:
