specialized China professional sanitary pad production machine with CE (HY800-SV)
  • China
  • HY800-SV
  • Xiamen
  • 1
  • T/T, L/C
  • $700000
Contact Now
Product Details

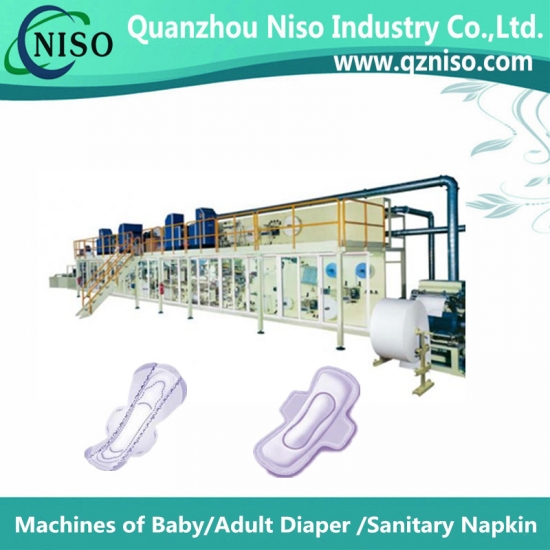

Full-Servo Sanitary Napkin Production Machine with CE(HY800-SV)


  sanitary napkin machine

 sanitary napkin machine supplier

Sanitary Napkin Machine Main Technical Parameter

Designed production speed 1000 pieces/min
Stable production speed 800 pieces/min(or as per customers designed)
Machine power three-phase five-wire(380V, 50HZ)
Machine capacity about 220 KW(exclude hot melt applicators and air compressor
Machine size 20.0m*7.0m*3.5m(L*W*H)(including stacker, set temporarily
Machine weight about 50T(whole production line)
Air pressure 0.6-0.8Mpa

Quick Details

*Condition: New sanitary napkin machine

*Product Type: sanitary napkin Machine

*Processing Type: Pulp Molding Machine

*Place of Origin: Fujian, China (Mainland)

*Model Number: HY800-SV

*Voltage: 380v, 50HZ, three-phase five-wire

*Power(W): about 220kw

*Dimension(L*W*H): 20*7*3.5m(L*W*H)

*Weight: 50T

*Certification: ISO, certificate of utility model patent

*Warranty: 1 year

*After-sales Service Provided: Engineers available to service machinery overseas

*Machine type: sanitary npkin making machine

*Designed speed: 1000 pcs/min

*Stable production speed: 800 pcs/min

*Diaper size: S, M, L, XL

*Control system: Full-servo control sanitary napkin machine

*Packaging system: Equipped with the stacker at the request of client

*Efficient rate: ≥ 85%

*Reject rate: ≤2%


Main Function Features of Sanitary Napkin Machine


1.The machine can produce regular type,economic type and high grade type sanitary napkin.


2.The machine can do different size sanitary napkin for women


3. The machine can do two type clsssic type and ultra thin type sanitary napkin


4.Materials of stereo-protection are complex and molding on machine

5.The quantity of SAP and fluff pulp can be adjusted freely


6. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.


7.The machine is attached with fully automatic packing machine(stacker),make packing simpler and save labor force


8.Machine equipped with production door


9.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type)


Machine Processing

  diaper machine made in China

  diaper making machine

 Our Workshop

   diaper making machine


Packing & Delivery:

Packing: Standard export package: pant anti-rust oil on machine, wrap machine with plastic film,
               then put machine in wooden cases.

Delivery Time: 120 days


diaper machine manufacturer


Our Services

Why choose us?

√  Chinese Listed company since Nov.30th, 2012

√  ISO certificate, certificate of utility model patentpatent for invention for machine etc

√  Full support for your complete project

√  Customers from over 100 countries in the world till now

√  Very good machines and service at good price

√  Own parts processing workshop

√  Factory manufacturer, not trading company

Excellent After-sales service

1. Machine operation training

2. Machine operators available

3. Life-long after-sales service for machines.

Raw Materials Available for Sanitary Napkin Manufacturing

1. Fluff type with quick easy package: pulp + Hydrophilic nonwoven (perforated nonwoven/film) + tissue paper + PE film + SAP + hot melt adhesive + release paper + PE packing film + Easy tape

2.Ultra-thin with quick easy package: Hydrophilic nonwoven (perforated nonwoven/film)  + SAP paper + PE film + hot melt adhesive +  air laid paper + PE packing film + Easy tape

 diaper raw materials

  diaper raw materials/diaper machine suppliers
